DESCRIPTION
Datasheet
Description:
|

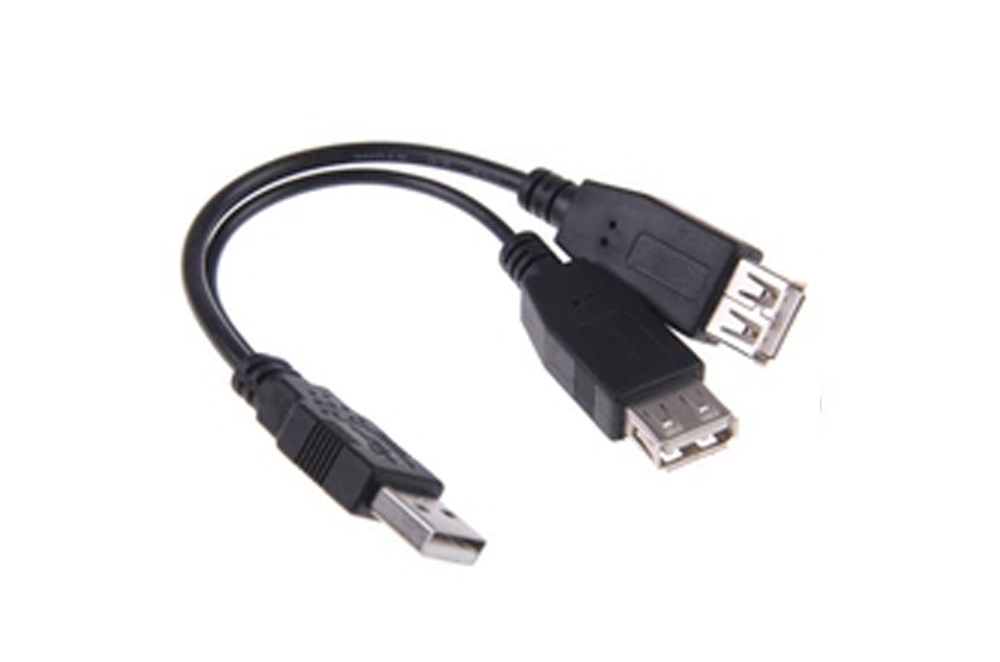

1) USB splitter cable 2 female 1 male
|
|
| 2) High speed 2.0 cable( compliant with USB1.1,USB2.0); one 28awg twisted pair(data )plus two power conductors; | |
|
3) Overall shield: overall aulminized polyester shield with drain wire pus tinned copper braid shield.
|
Wire structure:
|
Signal Conductor
|
28AWG (7/0.12) BC |
| Insulation | 0.9=0.05MM, PE (202-3364), white/green |
| Conductor | 28AWG~20AWG (7/0.12~0.30) BC |
| Shield | Aluminium foil |
| Ground Wire | 28AWG (7/0.12) BC |
| Braided Wire | 16/50.10BC |
| Jacket | PVC |
Features:
|
1) Type:
|
professional make high quality usb cable panel mount |
| 2) Connecor: | Gold/Nickel plated |
| 2) Conductor: | Pure Copper/Tinned Copper |
| 4) Gauge: | 30AWG,28AWG,26AWG optional; |
| 5) Length: | 0.5M,1.5M,2M,5M Customized; |
| 6) Jacket color: | Beige,Black,Transparent,white; |
| 7) Edition: | 1.1/2.0/3.0 Version Optional. |
| •Guarantees 100% compliance with current USB specifications. | |
| •Molded-strain relief construction for flexible movement, durability, and fit. | |
| •Reduces cross talk and interference with aluminum undermold contact. | |
| •Complies with fully rated cable specification using braid-and-foil shield protection. | |
| •Power strands are 24AWG x 2, data strands are 28AWG x 2. |

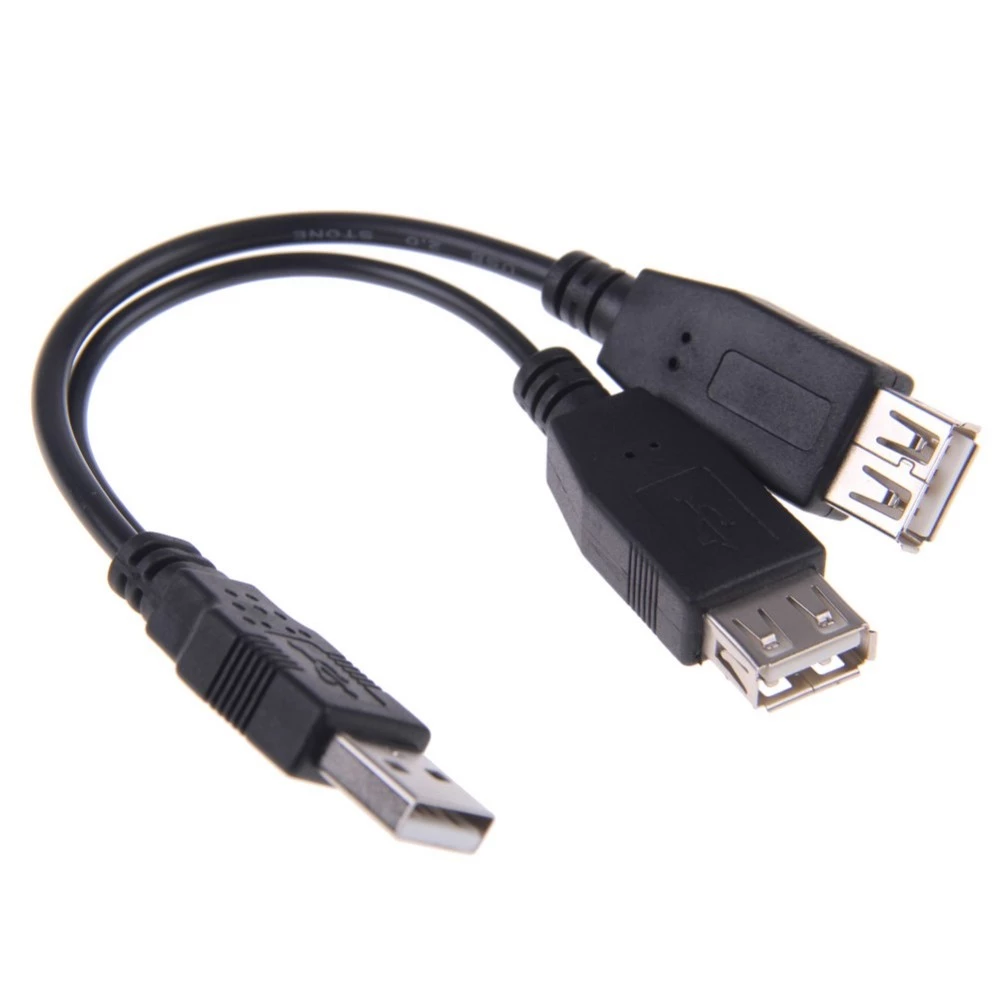

Detail pictures:
