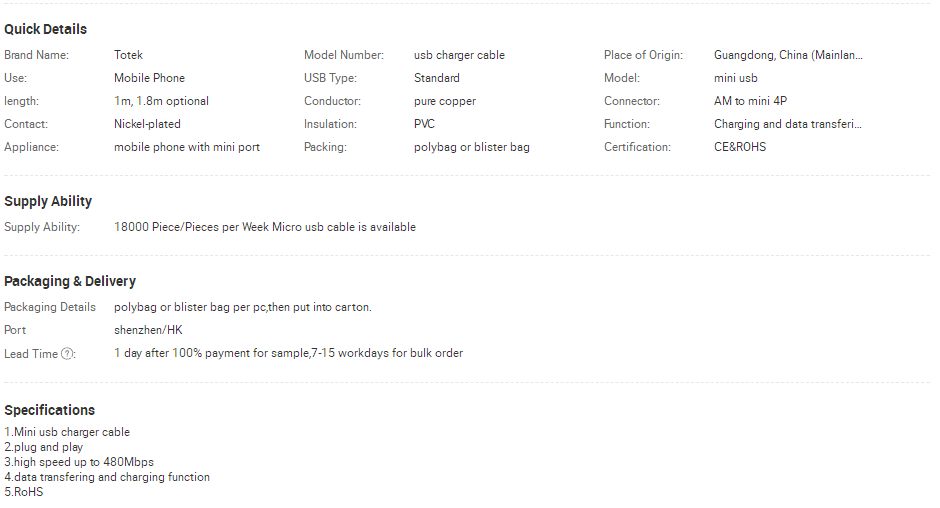

Mini usb charger cable for mini port mobile phone with RoHS certificate
Features:
1.Mini usb charger cable
2.plug and play
3.high speed up to 480Mbps
4.data transfering and charging function
5.All materials comply with RoHS
6.Complies with fully rated cable specification using braid-and-foil shield protection
7.Shield to ensure interference free operation EMI/RFI interference guarded
8.Flexible jacket for maximum usability
USB Mini Connector Pinout:
| Pin # | Pin Description | Colour | Function |
| 1 | +5V | Red | Power |
| 2 | Data- | White | Negative Signal |
| 3 | Data+ | Green | Positive Signal |
| 4 | ID | None | Permits distinction between Micro A and Micro B connectors - A connected to ground, B not connected |
| 5 | Ground | Black | Signal Ground |
Detail photos:

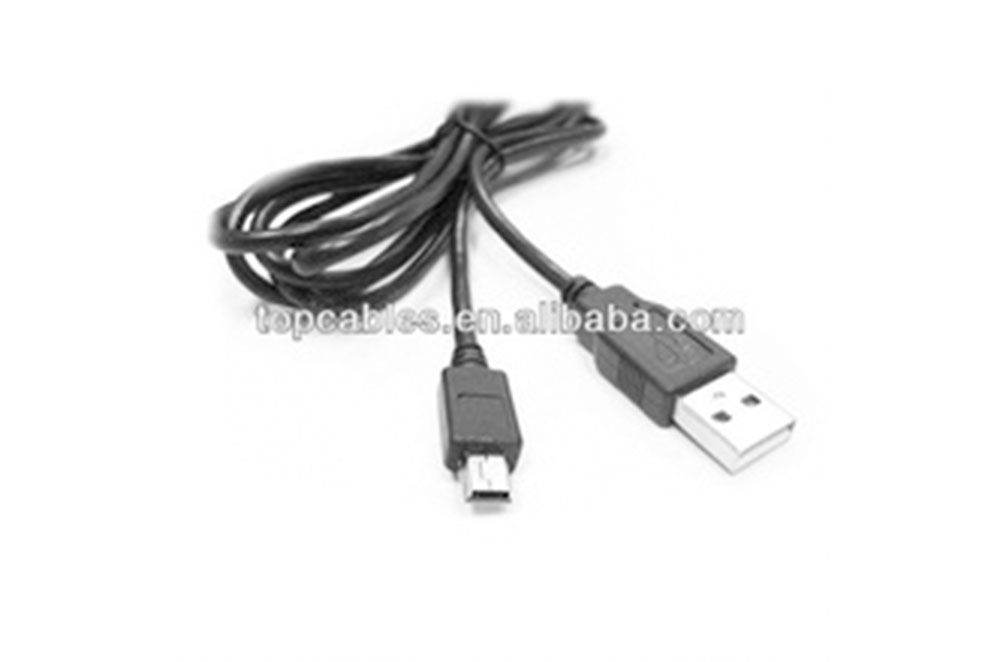

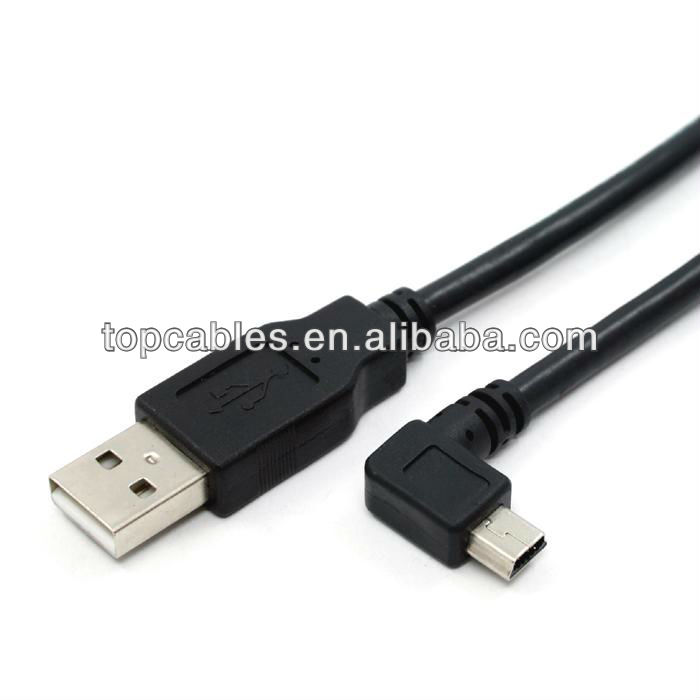

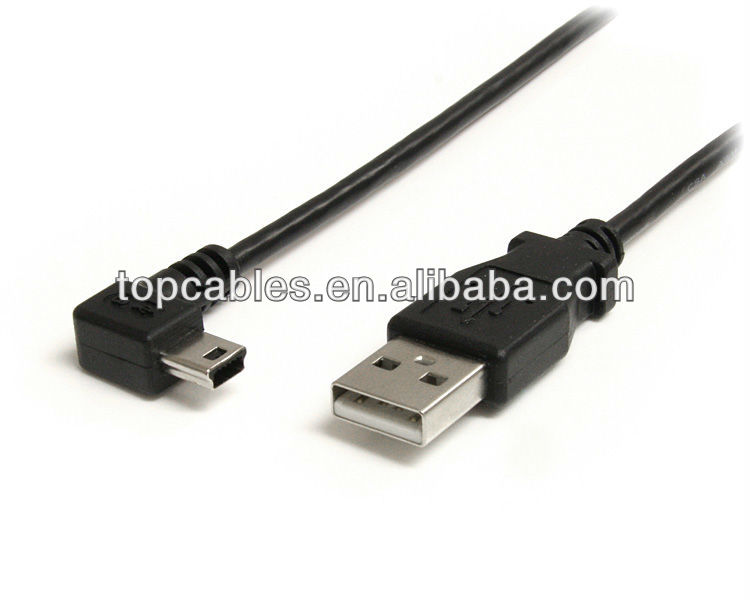

Standard 2.0 Mini USB cable
